ESP32-S3 Heltec Wifi LoRa 32 V3 SX1262
This is a Heltec ESP32 Dev. Board with assembled SX1262 LoRa module and 0.96-inches OLED display with I2C interface and a resolution of 128 x 64 pixels (no touch).
Please note: as I’m located in Europe, the board needs to use the 868 MHz variant of the board !
Documentation
- Heltec official manufacturer information: https://heltec.org/project/wifi-lora-32-v3/
- Arduino Heltec Boards: https://resource.heltec.cn/download/package_heltec_esp32_index.json (Version 3.0.3)
- Quick start: https://wiki.heltec.org/docs/devices/open-source-hardware/esp32-series/esp32-quick-start?esp32=esp32
- GitHub: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
- GitHub releases: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/releases
- Heltec library: https://github.com/HelTecAutomation/Heltec_ESP32 version 2.1.5
- Heltec Resources: https://resource.heltec.cn/download/WiFi_LoRa_32_V3
- Heltec Firmware (Meshtastic & more)
- Heltec Community: http://community.heltec.cn/

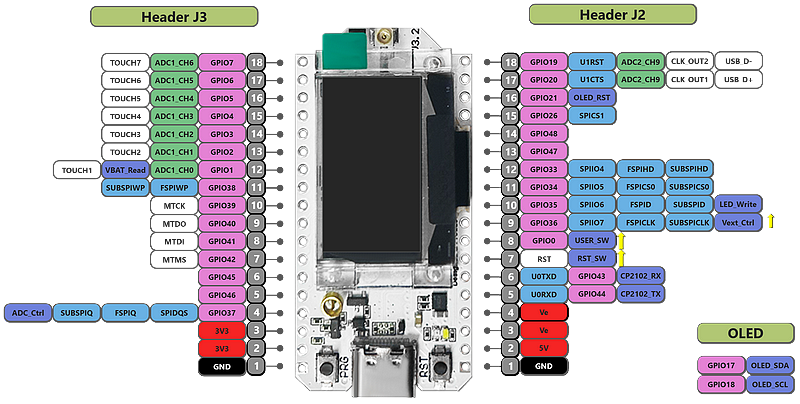

ESP32 Heltec WiFi LoRa 32 V3 pin mapping and schematic
- Schematic V3.2 or online V3.2 or online V3.1 or online V3
Libraries
The following libraries and version numbers are tested with this board:
- OLED: esp8266-oled-ssd1306 by ThingPulse version 4.6.1: https://github.com/ThingPulse/esp8266-oled-ssd1306
- LoRa: SX12XX-LoRa by Stuart Projects version Oct 24, 2024: https://github.com/StuartsProjects/SX12XX-LoRa
Development board profile
| Position | Characteristics |
|---|---|
| Processor: | ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor), Flash 8 MB, NO PSRAM |
| CPU Frequencies | 240/160/80 MHz (for WiFi), 40/20/10 MHz (no WiFi) |
| Pins available on Breadboard | 0, 1, 2, 3, 4, 5, 6, 7, 19, 20, 21, 26, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, (total 26), RST, 3.3V 2, 5V, 3.3V Vext 2, GND 2* |
| Pins available on solder pads | NO |
| Pins available internally | 0 (BOOT button), LoRa module and display (see below) |
| Pins safe to use | ??? |
| Display | YES, SSD1336 0.96-inches display, I2C interface, 128x64 pixels, no touch controller |
| Interfaces | 2x I2C, 2x SPI, 3x UART, ??? 11x GPI0 (PWM), ??? 4x ADC |
| Onboard Power LED | YES (battery load control) |
| Onboard GPIO LED | YES |
| USB-Connection | USB-C, Controller: CP2102 |
| Wi-Fi connector | Spiral antenna |
| Wi-Fi | YES, 802.11 b/g/n (2.4 GHz), STA/AP/Mixed |
| Bluetooth Classic | ??? YES, 5.0 |
| Bluetooth Low Energy (BLE) | YES, Bluetooth 5.0 LE protocols |
| LoRa antenna connector | Ipex |
| Battery connector | YES SH 1.25 2-pol |
| Battery loading | YES |
| Battery voltage measure | YES |
| Battery voltage measure control | YES |
| Extern voltage control | YES (“Vext”) |
| Restart button | YES |
| BOOT button | YES, GPIO 0 |
| On-/Off Switch | NO |
| SD card reader | NO |
| Breadboard pins | 2 * 18 pins |
| QWIIC connector | NO |
| Internal temperature sensor | YES |
| Low Dropout Voltage Regulator (LDO) | CE6260 B33M (500 mA) |
| Breadboard pins distance (width) | ??? 2,3 cm (1 pin on each side available on a breadboard) |
| Security features | Encryption hardware accelerators that support AES-128/256, hashing, RSA, HMAC, digital signatures, and secure startup |
| Expansion board | NO |
| Arduino board selection | Heltec WiFi LoRa 32 (V3) |
Display pin profile (I2C interface)
| Position | GPIO |
|---|---|
| SDA | 17 |
| SCL | 18 |
| RST | 21 |
LoRa module pin profile (SPI interface)
| Position | GPIO |
|---|---|
| SS (CS) | 08 |
| MOSI | 10 |
| MISO | 11 |
| SCK | 09 |
| DIO0 | - |
| DIO1 | 14 |
| DIO2 | - |
| RST_LoRa | 12 |
| BUSY_LoRa | 13 |
LED pin profile
| Position | GPIO |
|---|---|
| LED | 35 |
Vext control
| Position | GPIO | Comment |
|---|---|---|
| Vext | 36 (LOW-ON,HIGH-OFF) |
Battery control
| Position | GPIO | Comment |
|---|---|---|
| VBAT_CTRL | 37 | |
| VBAT_ADC | 1 |
